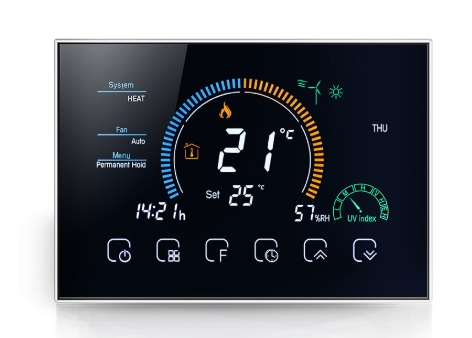

BHT-8000 (Heating Thermostat)
Knob • Heating • Wi-Fi
Reliable heating thermostat with WiFi/Modbus for floor, boiler, and electric systems.
6-period scheduling, precise temperature control, Tuya-compatible smart features.

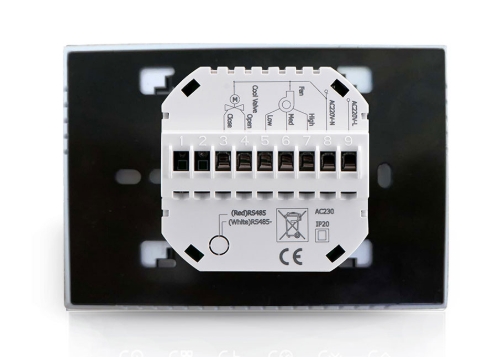

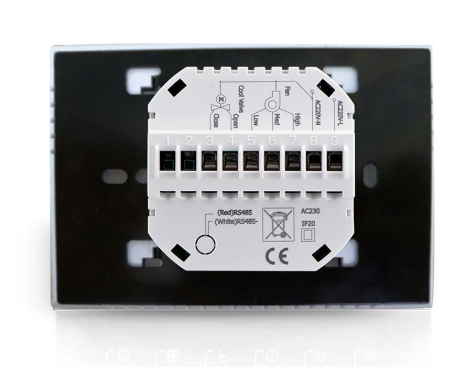

Back image:
Specifications
Power Supply
95~240 VAC, 50~60Hz
Current Load
5A (water heating, water/gas boiler), 16A (electric heating)
Sensor
NTC3950, 10K
Accuracy
±0.5°C
Set Temp. Range
5~35°C
Room Temp. Range
5~99°C
Display Temp. Range
5~99°C
Ambient Temp.
0~45°C
Ambient Humidity
5~95% RH (Non-condensing)
Storage Temp.
-5~45°C
Power Consumption
<1.5 W
Timing Error
<1%
Shell Material
PC + ABS (Fireproof)
Installation Box
86×86 mm Square or European 60 mm Round
Wire Terminals
Wire 2 × 1.5 mm² or 1 × 2.5 mm²
Protection Class
IP20
Buttons
Capacitive Touch Buttons
Easy Installation
Compatible with standard installation boxes and supports internal/external sensors.
Smart Control
Wi-Fi and Modbus enabled for remote scheduling and integration with smart home platforms.
