Froped 7000 Series

Compare the Froped BHT-7000 heating thermostat and BAC-7000 fan-coil thermostat side by side with specs, features, and photos.

Jump to comparison
7
Choose the right 7000 model
Heating thermostat vs fan-coil thermostat — specs, photos, gallery.

Froped BHT-7000 (Heating Thermostat)

Knob • Heating • Wi-Fi

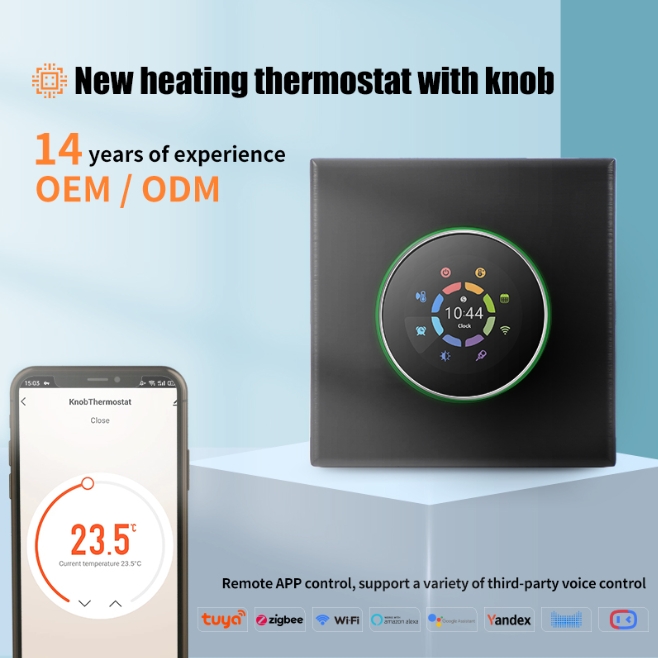

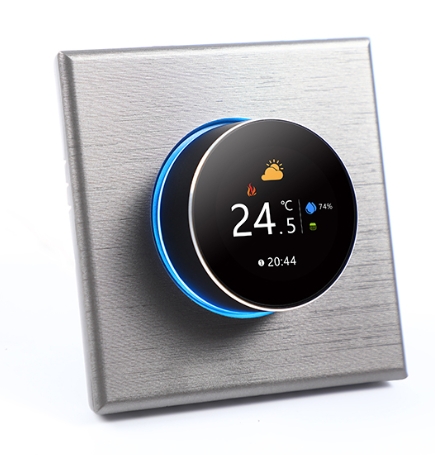

BHT-7000 front
Reliable heating thermostat for floor, boiler and electric systems.
Intuitive interface, accurate control, Tuya-compatible smart features.
Back image:

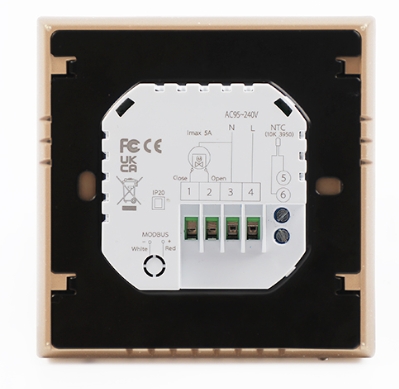

BHT-7000 back

Specifications

Power Supply
95~240 VAC, 50~60Hz or 24V DC/AC, 50~60Hz
Current Load
5A (water heating, gas boiler), 16A (electric heating)
Sensor
NTC3950, 10K
Accuracy
±1°C
Set Temp. Range
5~35°C
Room Temp. Range
5~99°C
Display Temp. Range
5~99°C
Ambient Temp.
0~45°C
Ambient Humidity
5~95% RH (Non-Condensing)
Storage Temp.
-10~45°C
Power Consumption
<1.5W
Timing Error
<1%
Shell Material
PC + ABS (Fireproof)
Installation Box
86×86 mm Square or European 60 mm Round Box
Wire Terminals
Wire 2 × 1.5 mm² or 1 × 2.5 mm²
Protection Class
IP20
Buttons
Capacitive Touch Buttons

Easy Installation

Designed to work with standard installation boxes and supports both internal and external sensors.

Smart Control

Wi-Fi enabled for remote scheduling and voice control via Tuya-compatible platforms.

PDF Preview

Froped BAC-7000 (Fan-Coil Thermostat)

Touch • Fan-Coil • Wi-Fi

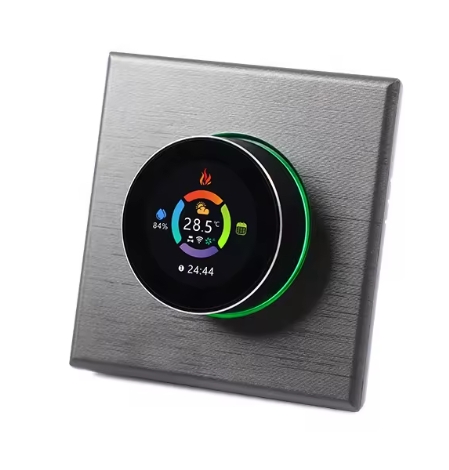

BAC-7000 front
Fan-coil thermostat with multi-mode control and relay outputs.
Supports 2/4-pipe systems, fan speed control, Tuya integration.
Back image:
BAC-7000 back

Specifications

Power Supply
95–240 VAC, 50–60Hz or 24V DC/AC, 50–60Hz
Fan Relay Amps (Resistive)
5A
Fan Relay Amps (Inductive)
3A
Valve Relay Amps (Resistive)
3A
Valve Relay Amps (Inductive)
1A
Sensor
NTC3950, 10K
Set Temperature Range
5–35 °C
Accuracy
±0.5 °C
Display Temperature Range
5–99 °C
Ambient Temperature
0–45 °C
Ambient Humidity
5–95% RH (Non-Condensing)
Storage Temperature
0–45 °C
Timing Error
<1%
Power Consumption
<1.5 W
Shell Material
PC + ABS (Fireproof)
Installation Box
86×86 mm (Square) or European 60 mm (Round)
Wire Terminals
2 × 1.5 mm² or 1 × 2.5 mm²
Protection Class
IP20
Buttons
Capacitive Touch Buttons

Fan-Coil Support

Designed for 2/4 pipe fan-coil units with multiple fan speed control and valve outputs.

Smart Scheduling

Weekly scheduling and remote control via Tuya-compatible app.

PDF Preview

Direct Comparison

Control
BHT-7000: Heating (knob/touch) — BAC-7000: Fan-coil (touch)
Connectivity
Both: Wi-Fi (Tuya) — App & voice control
Best for
BHT-7000: Underfloor / Boiler / Electric heating — BAC-7000: Fan-coil units (2/4 pipe)
Load Handling
BHT-7000: 16 A (electric) — BAC-7000: Fan/Valve relays 1–5 A
Sensor Options
BHT-7000: internal/external probe — BAC-7000: NTC sensors
Programming
BHT-7000: Basic scheduling — BAC-7000: 5+1+1 or 6-period weekly

View Photos

BHT-7000
BHT-7000 rear
BAC-7000
BAC-7000 rear
