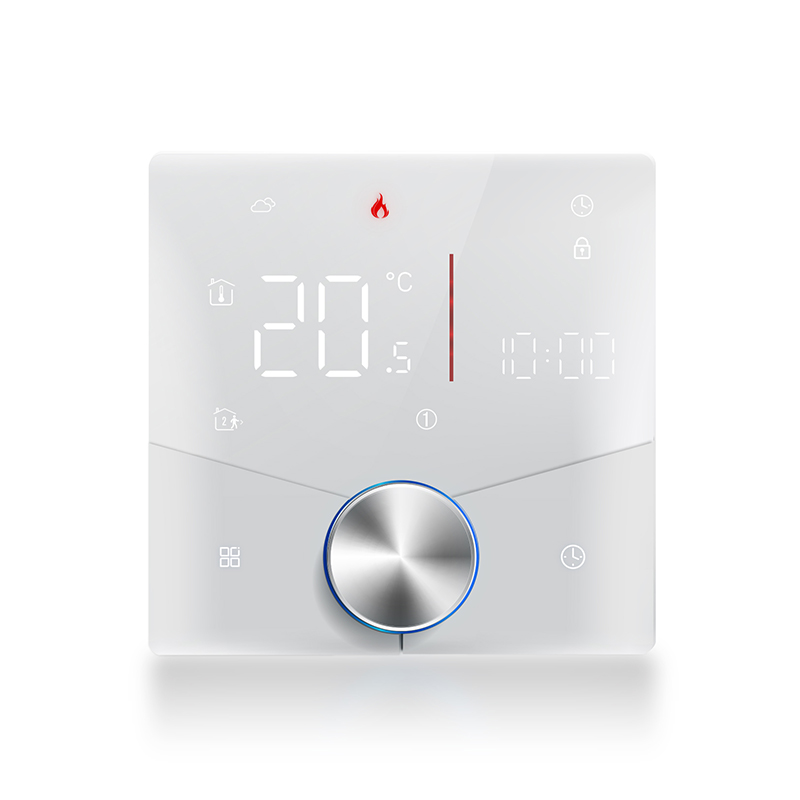

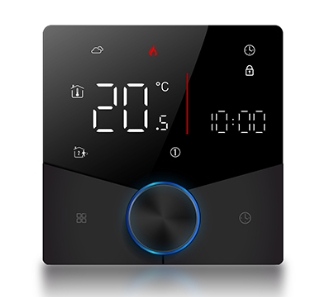

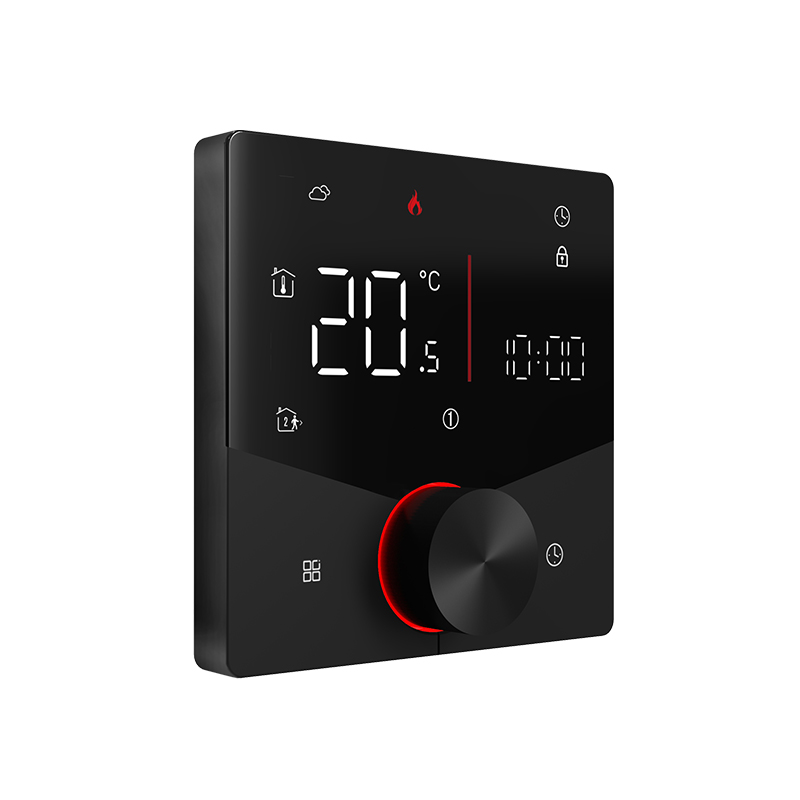

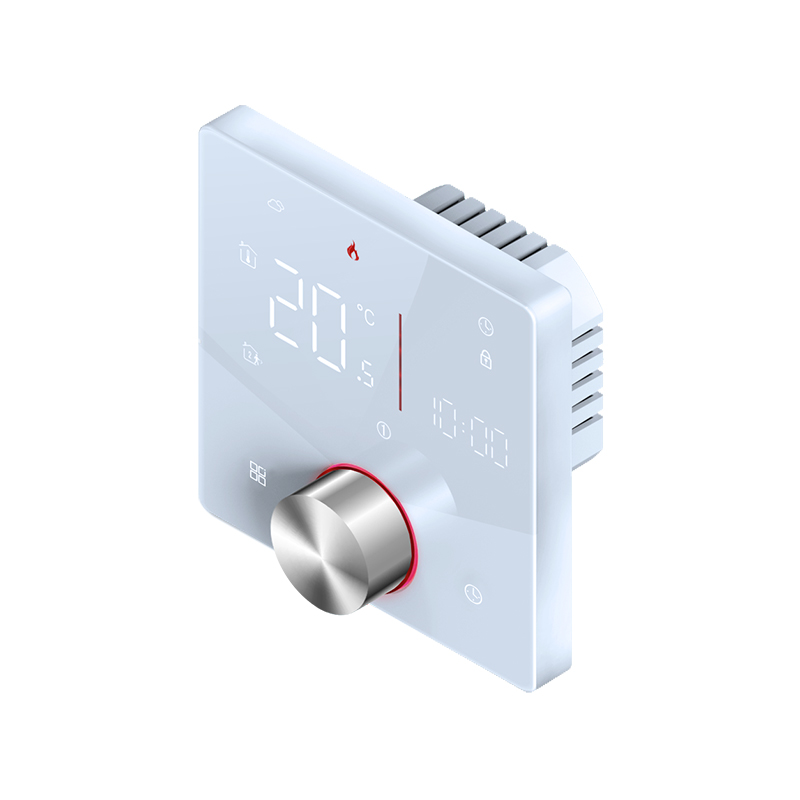

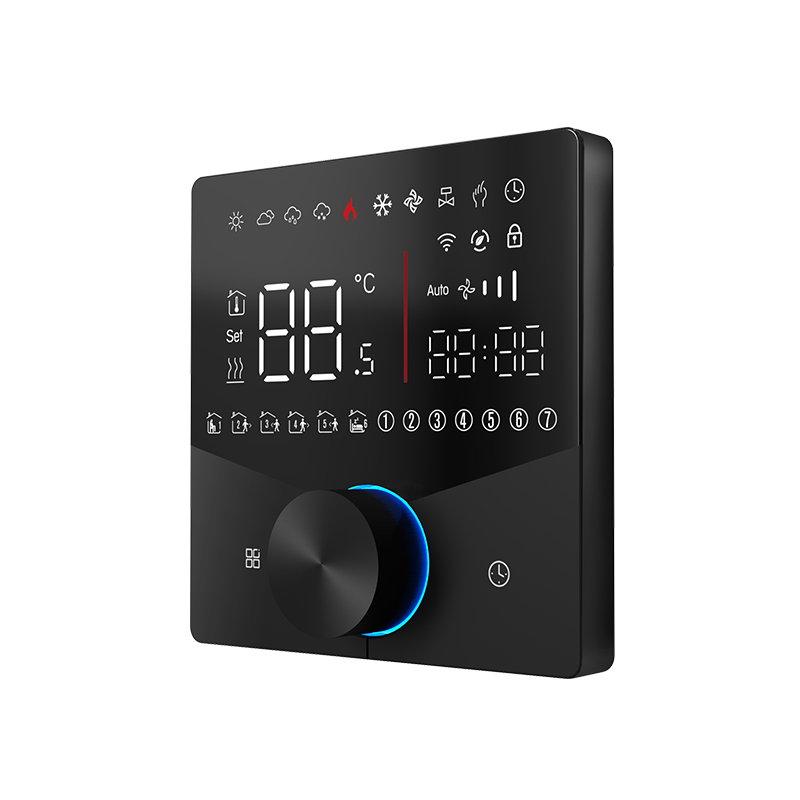

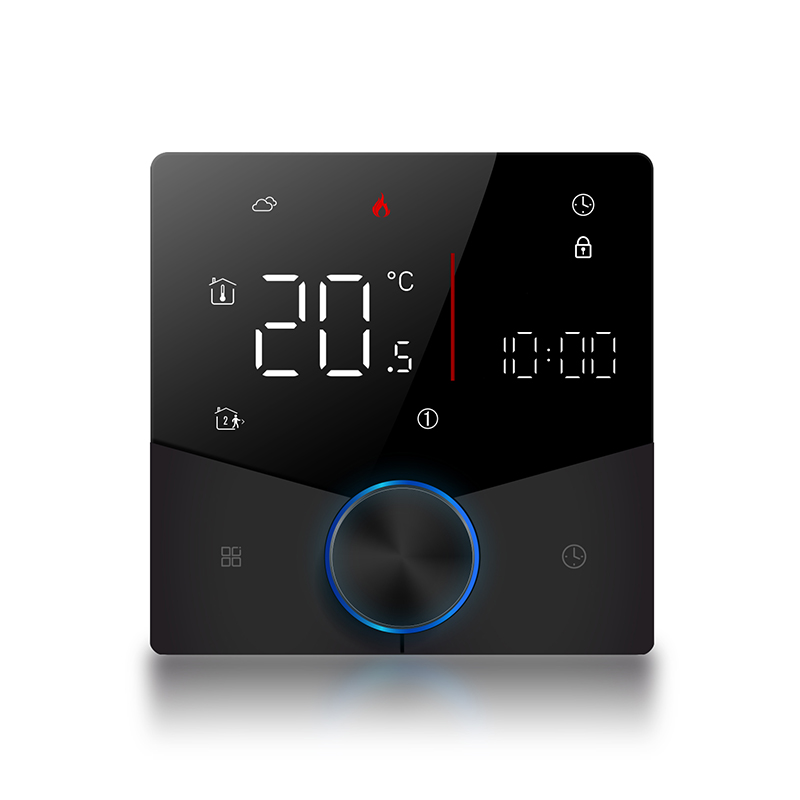

Froped BHT-009 (Heating Thermostat)
Knob • Heating • Wi-Fi
Reliable heating thermostat for floor, boiler and electric systems.
Intuitive interface, accurate control and Tuya-compatible smart features.

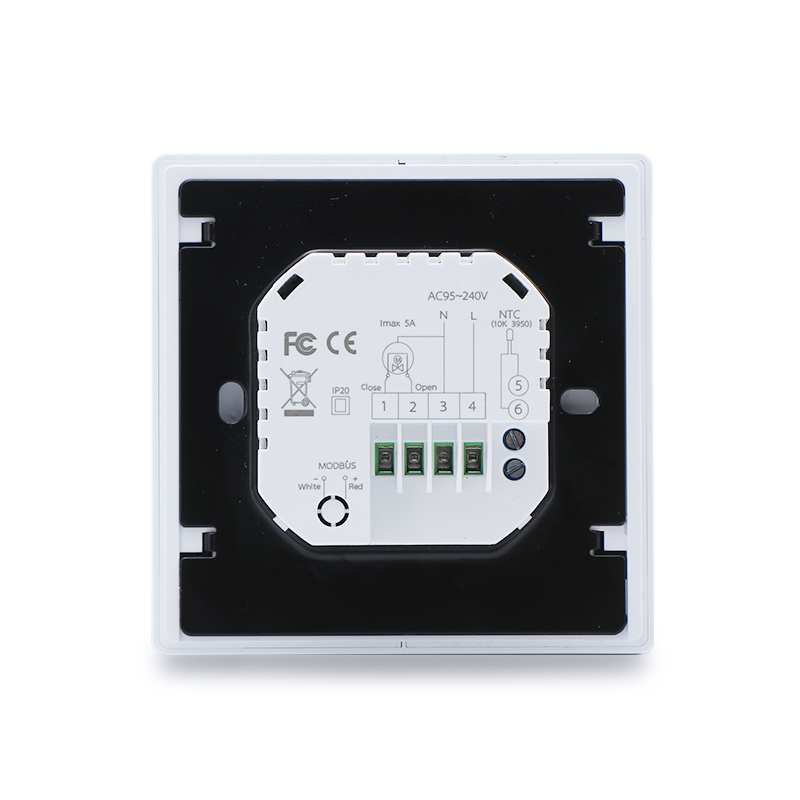

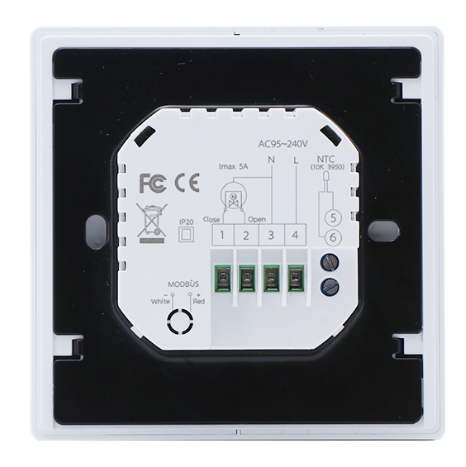

Back image:
Specifications
Power Supply
95–240 VAC, 50–60 Hz or 24V DC/AC, 50–60 Hz
Current Load
5A (water heating, water/gas boiler), 16A (electric heating)
Sensor
NTC3950, 10K
Accuracy
±1 °C
Set Temp. Range
5–35 °C
Room Temp. Range
5–70 °C
Display Temp. Range
5–70 °C
Ambient Temp.
0–45 °C
Ambient Humidity
5–95% RH (Non-Condensing)
Storage Temp.
-5–45 °C
Power Consumption
<1.5 W
Timing Error
<1%
Shell Material
PC + ABS (Fireproof)
Installation Box
86×86 mm Square or 60mm European Round Box
Wire Terminals
Wire 2×1.5 mm² or 1×2.5 mm²
Protection Class
IP20
Buttons
Capacitive Touch Buttons
Easy Installation
Designed to work with standard installation boxes and supports both internal and external sensors.
Smart Control
Wi-Fi enabled for remote scheduling and voice control via common smart platforms.
