Froped 006 (BHT‑006)
Knob • Tuya / Tuya‑Like
Compact knob thermostat for floor and room
control.
Simple user interface with precise temperature control and
app connectivity.

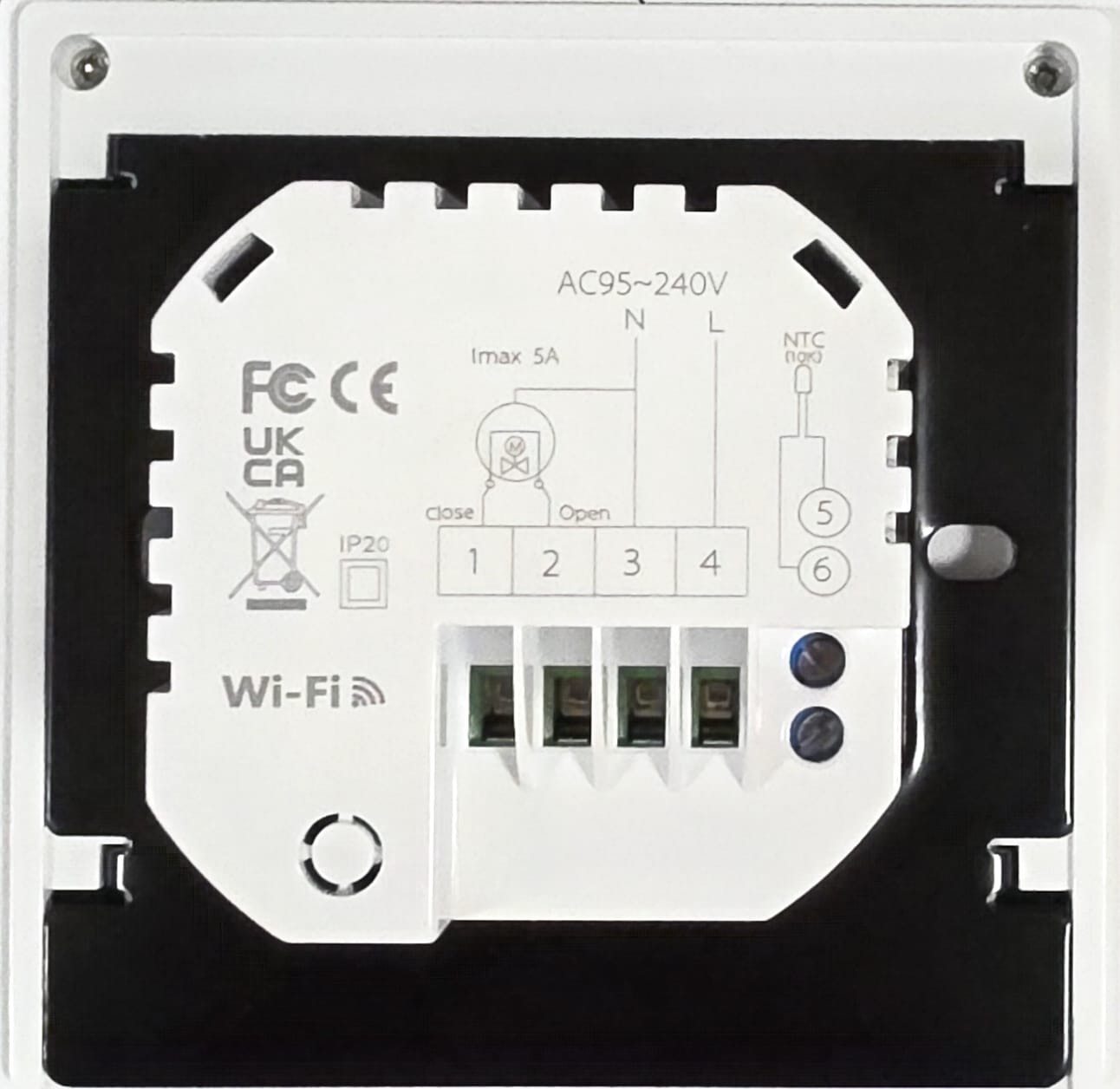

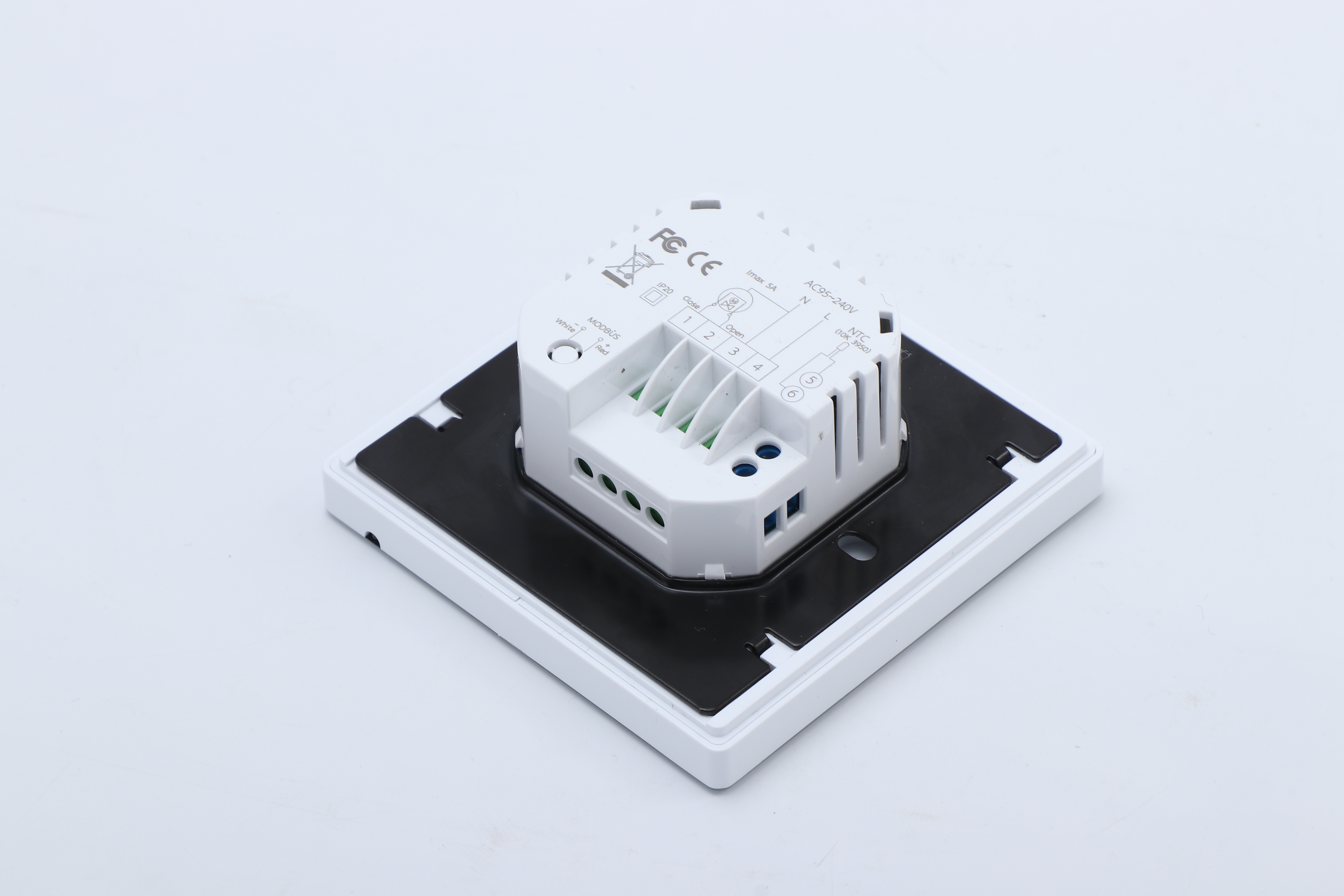

Back image:
Specifications
Power Supply
95–240 VAC, 50–60 Hz
Current Load
5A (water heating, gas boiler), 16A (electric heating)
Sensor
NTC3950, 10K
Accuracy
±1°C
Set Temp. Range
5–35°C
Room Temp. Range
5–99°C
Display Temp. Range
5–99°C
Ambient Temp.
0–45°C
Ambient Humidity
5–95% RH (Non-Condensing)
Storage Temp.
–10–45°C
Power Consumption
<1.5W
Timing Error
<1%
Shell Material
PC + ABS (Fireproof)
Installation Box
86×86mm Square or European 60mm Round Box

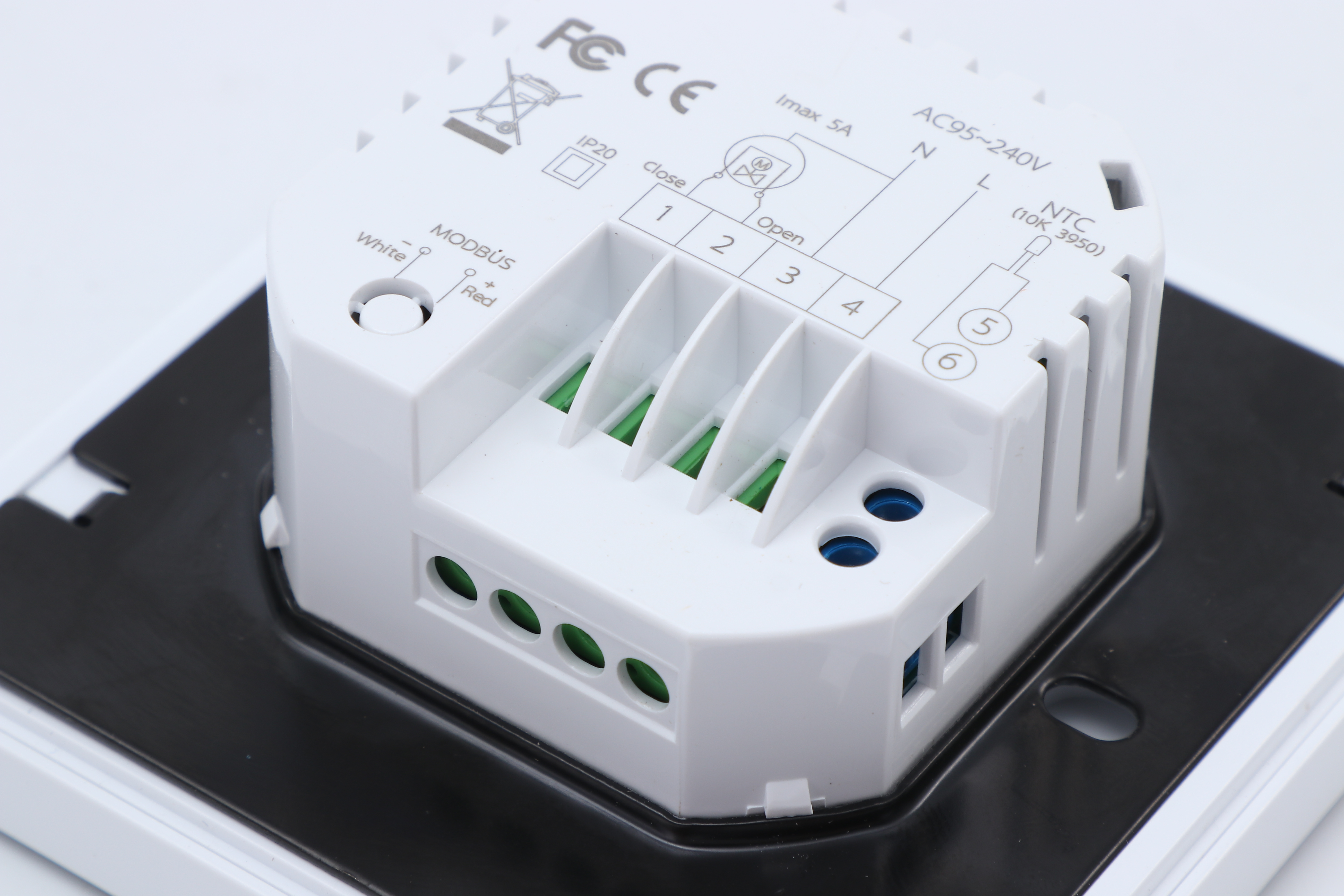

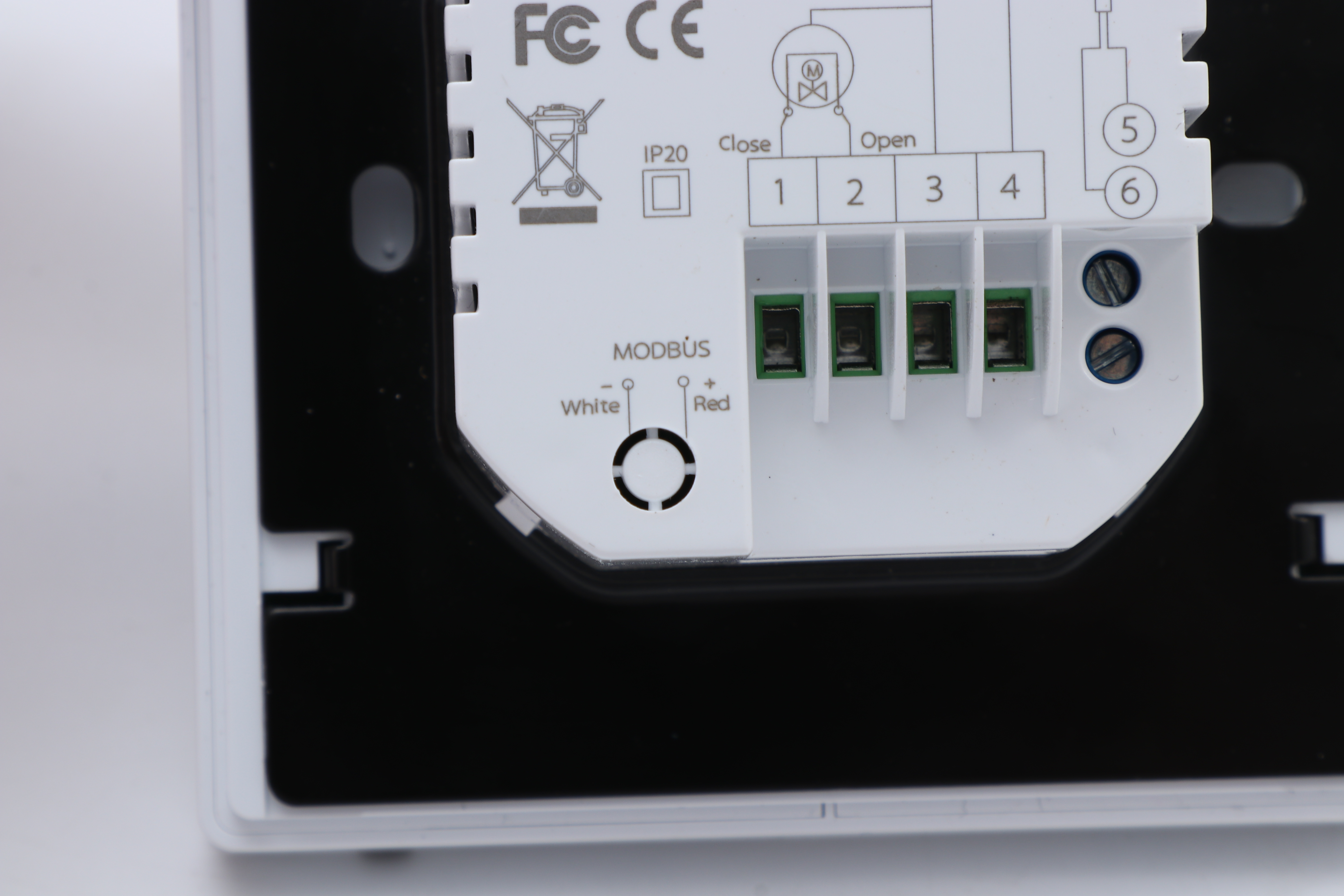

Wire Terminals
2×1.5 mm² or 1×2.5 mm²
Protection Class
IP20
Buttons
Capacitive Touch Buttons
App Control
Connects to Tuya/SmartLife app for remote monitoring and scheduling.
Knob Operation
Fast & intuitive temperature adjustment with tactile knob.
