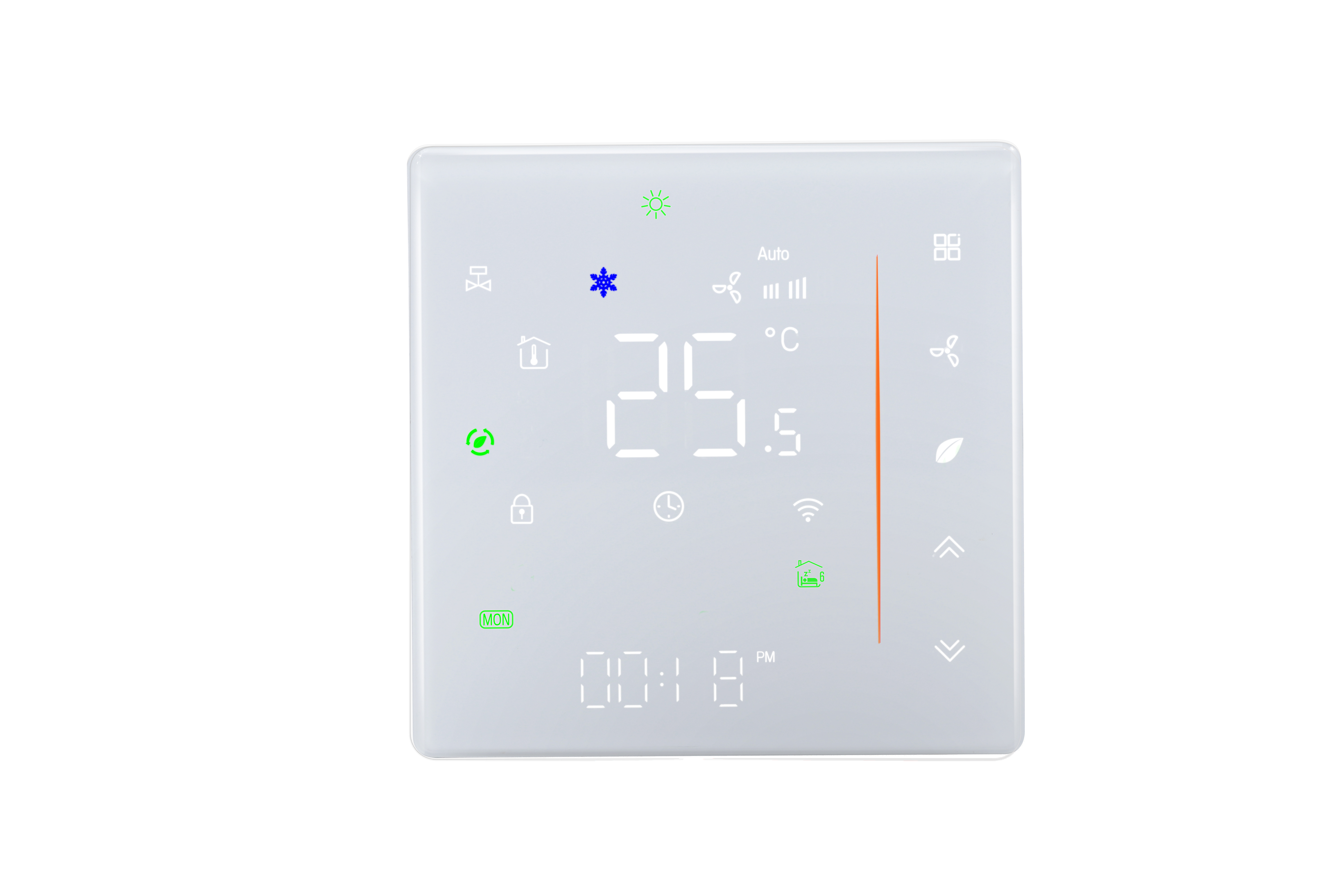

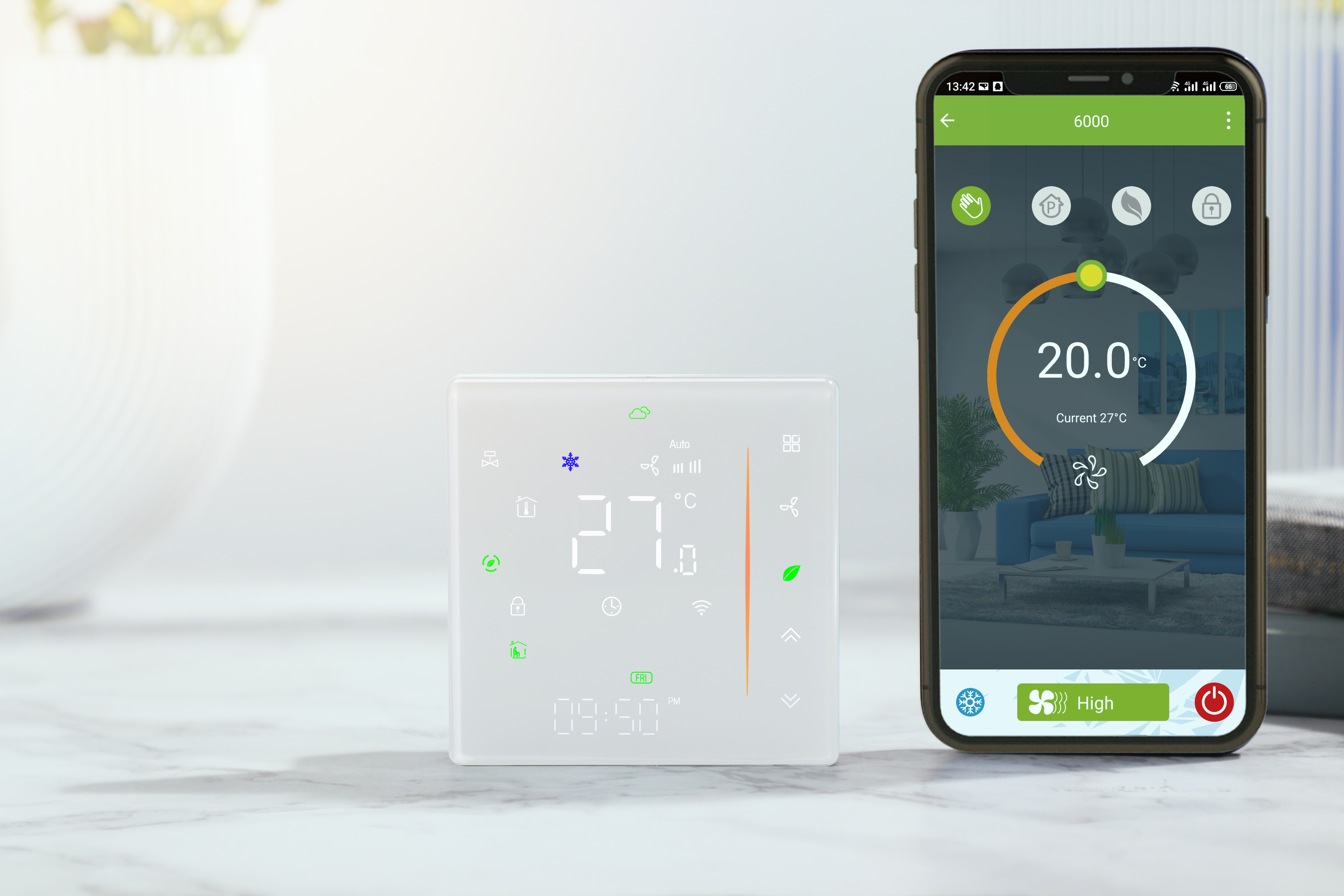

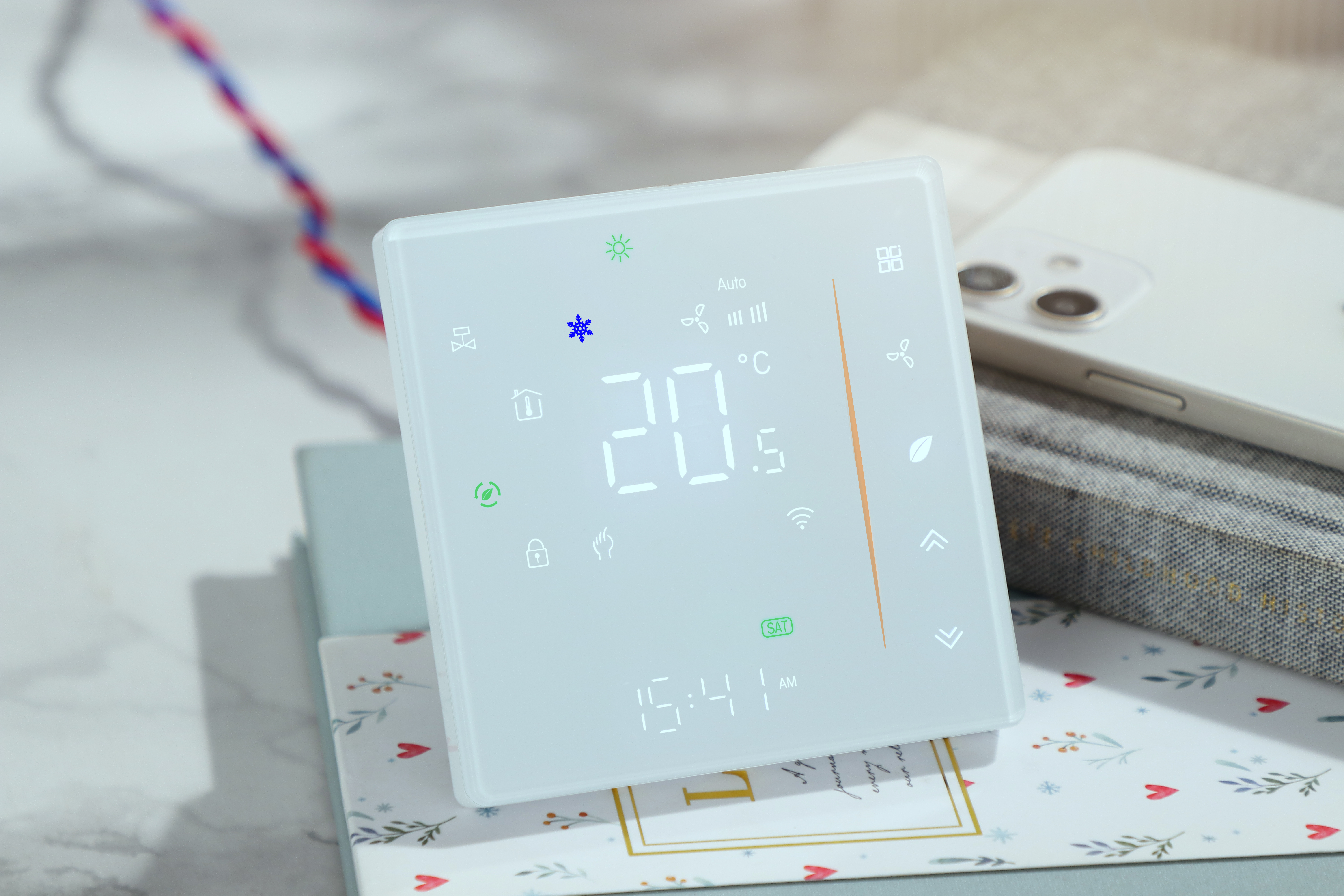

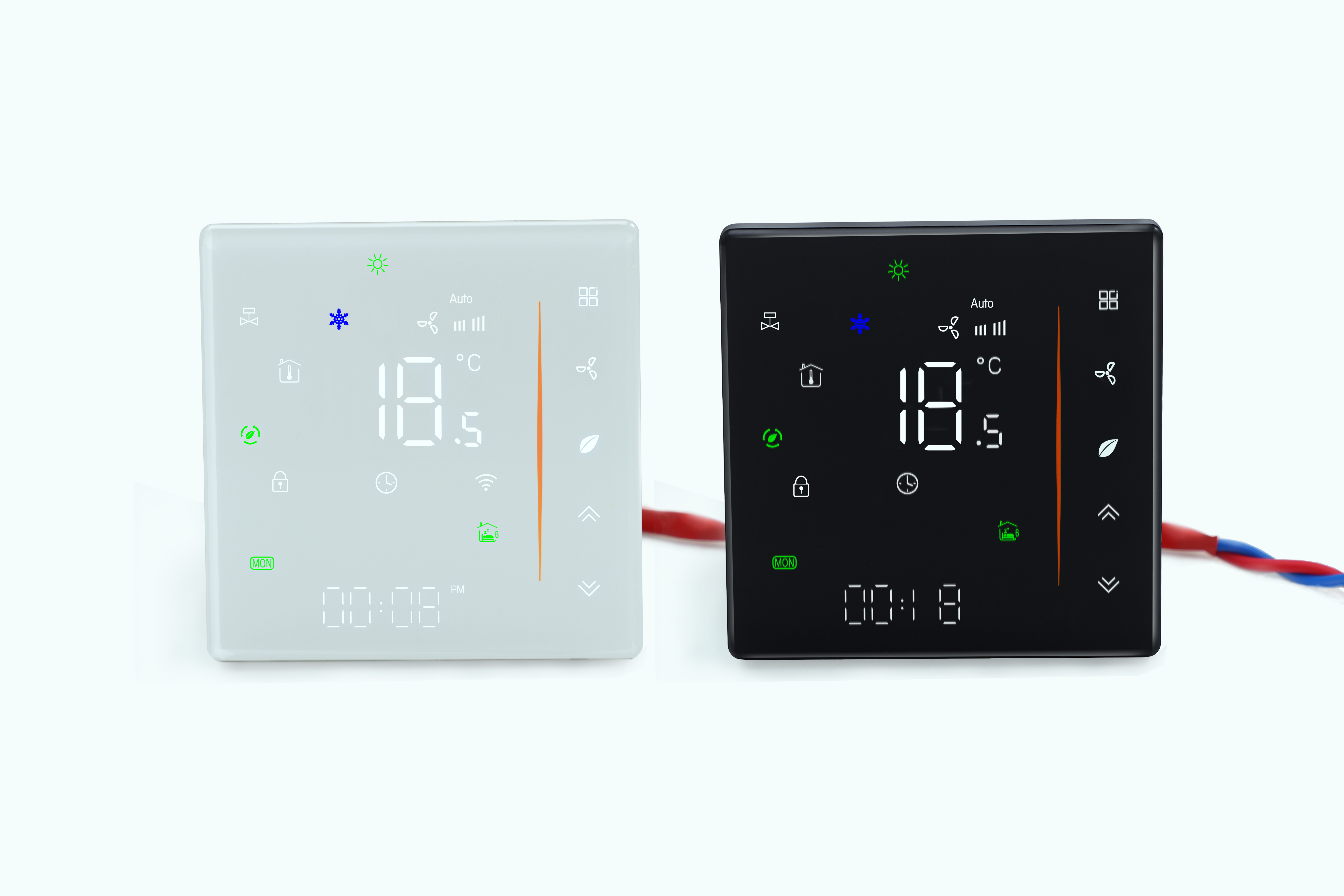

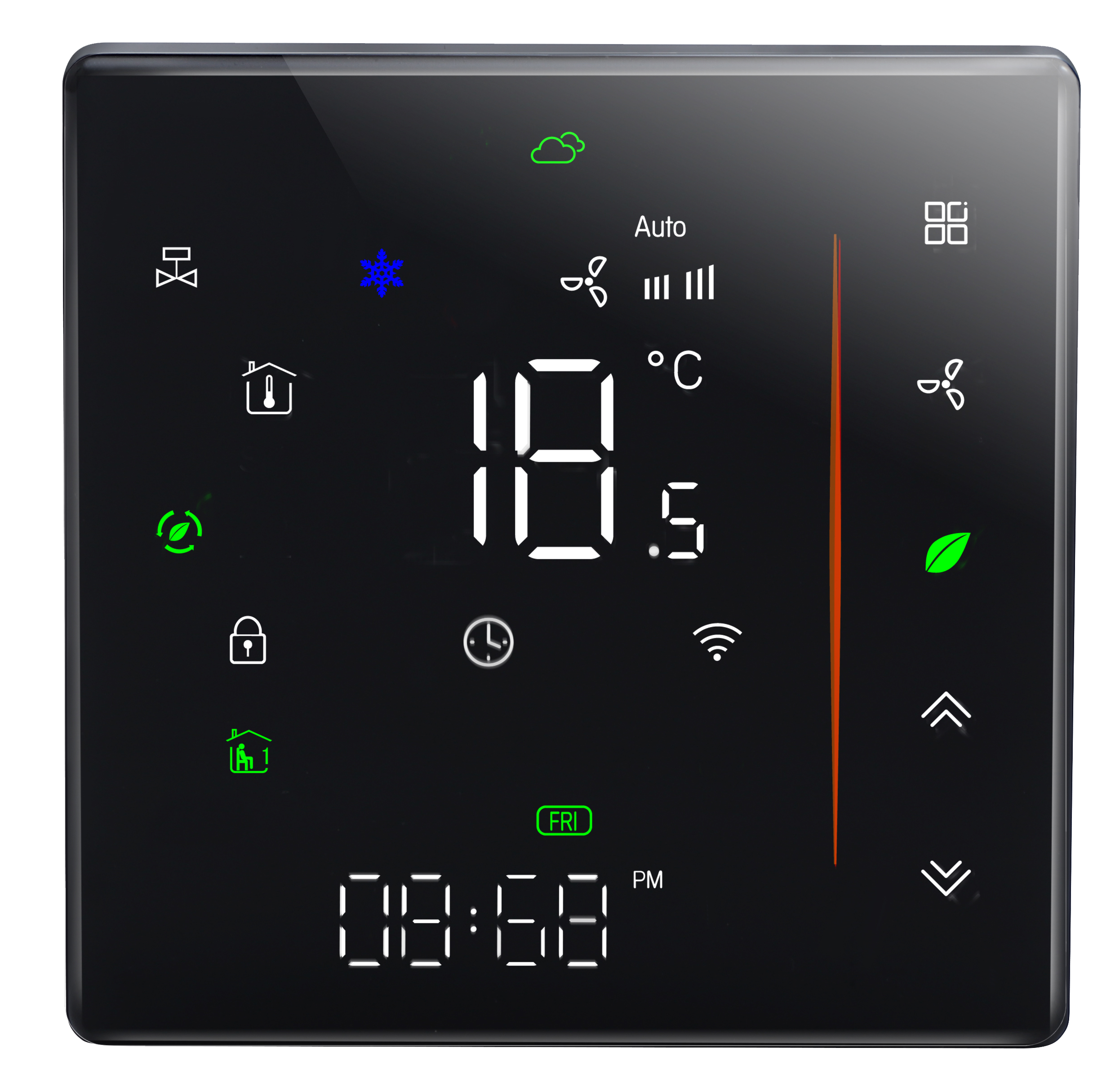

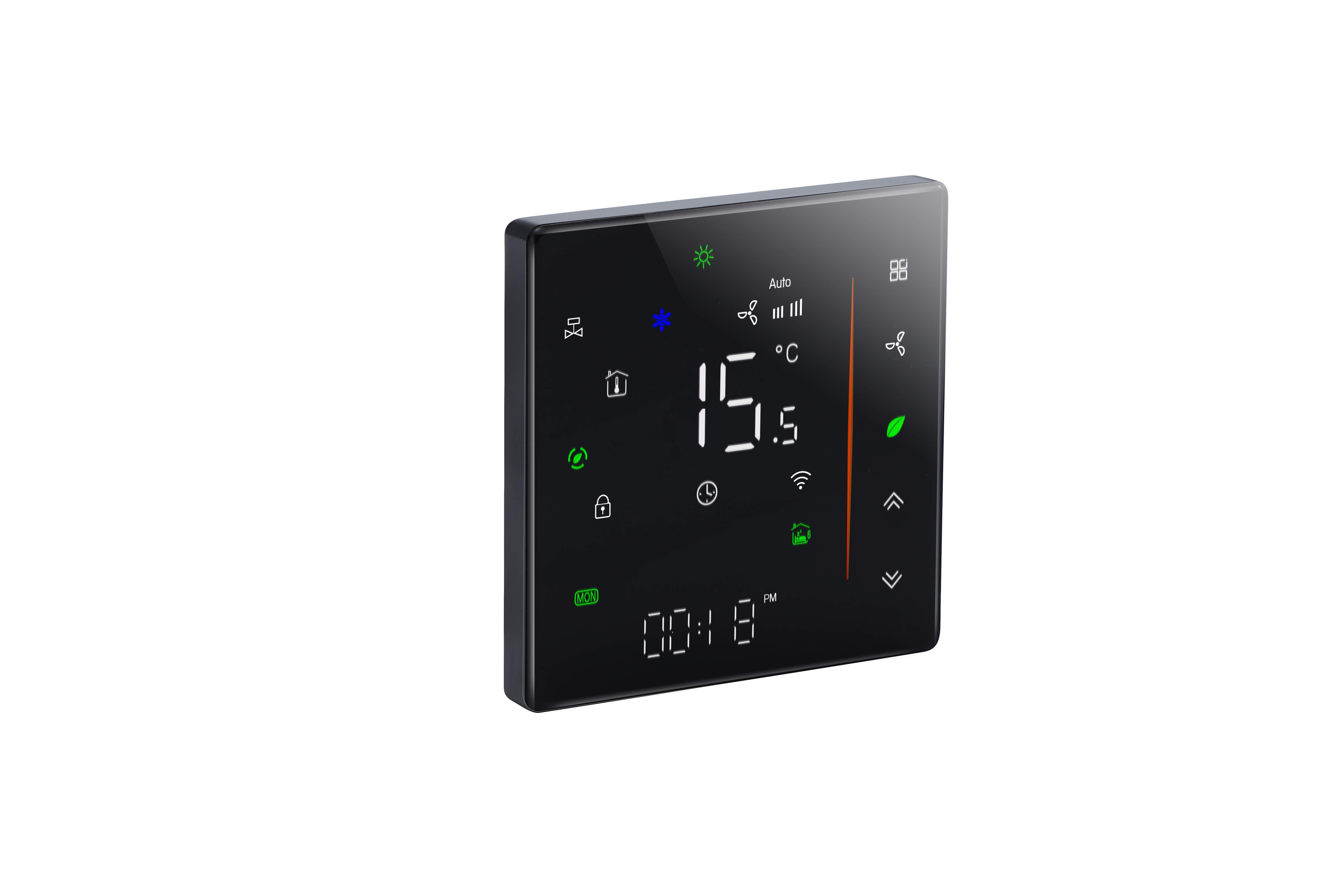

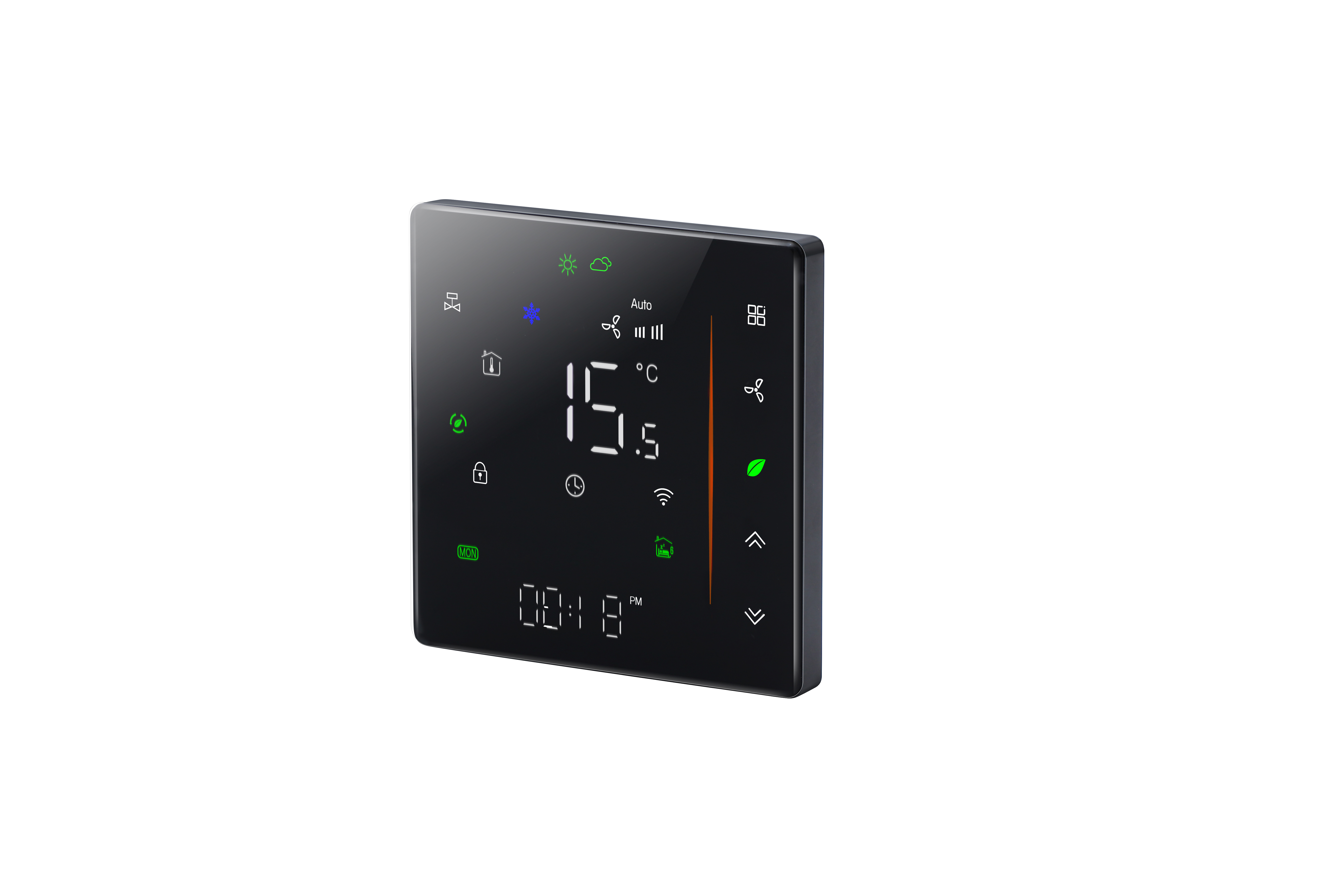

BAC-006 · Touch Room Thermostat
BAC-006 main image
Image 1

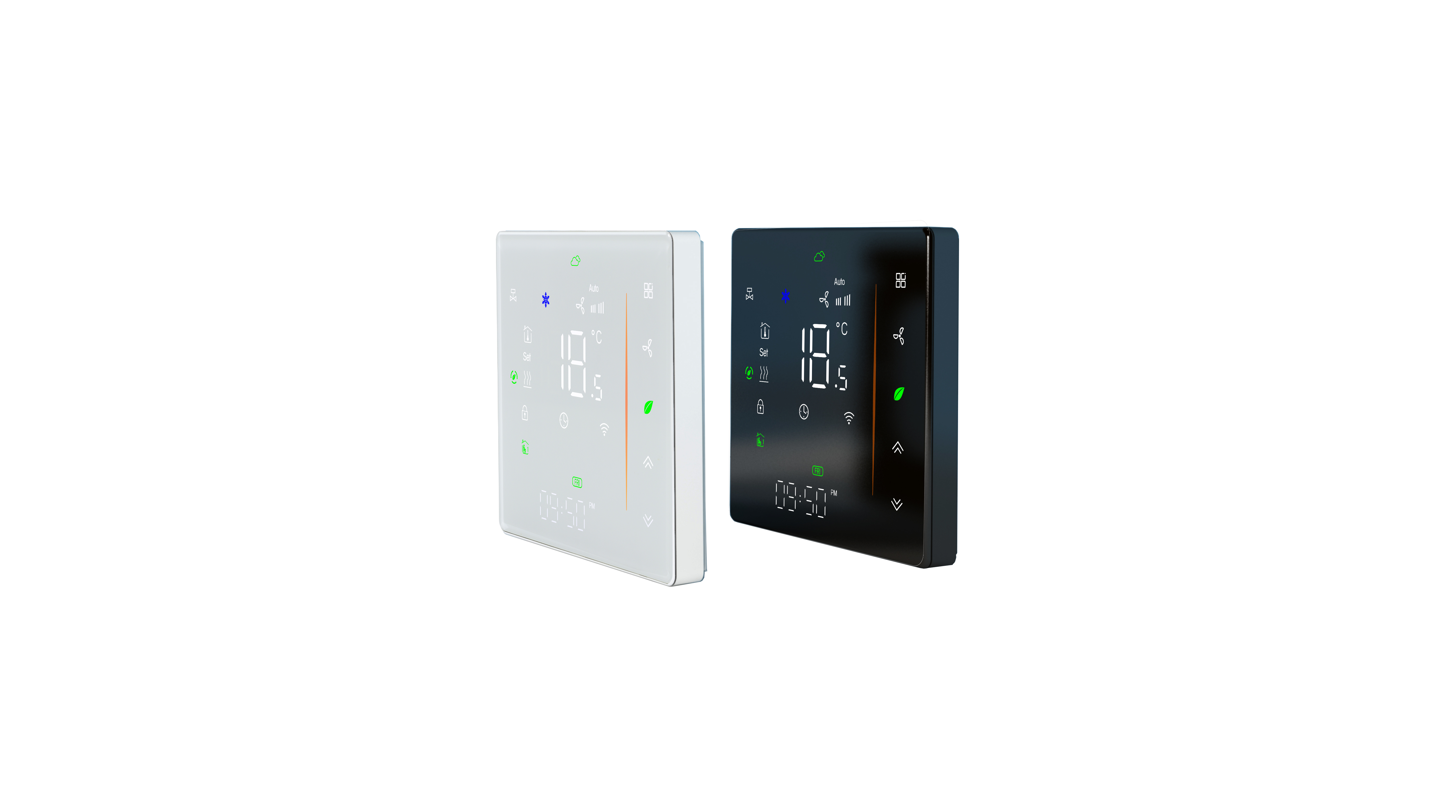

Image 2

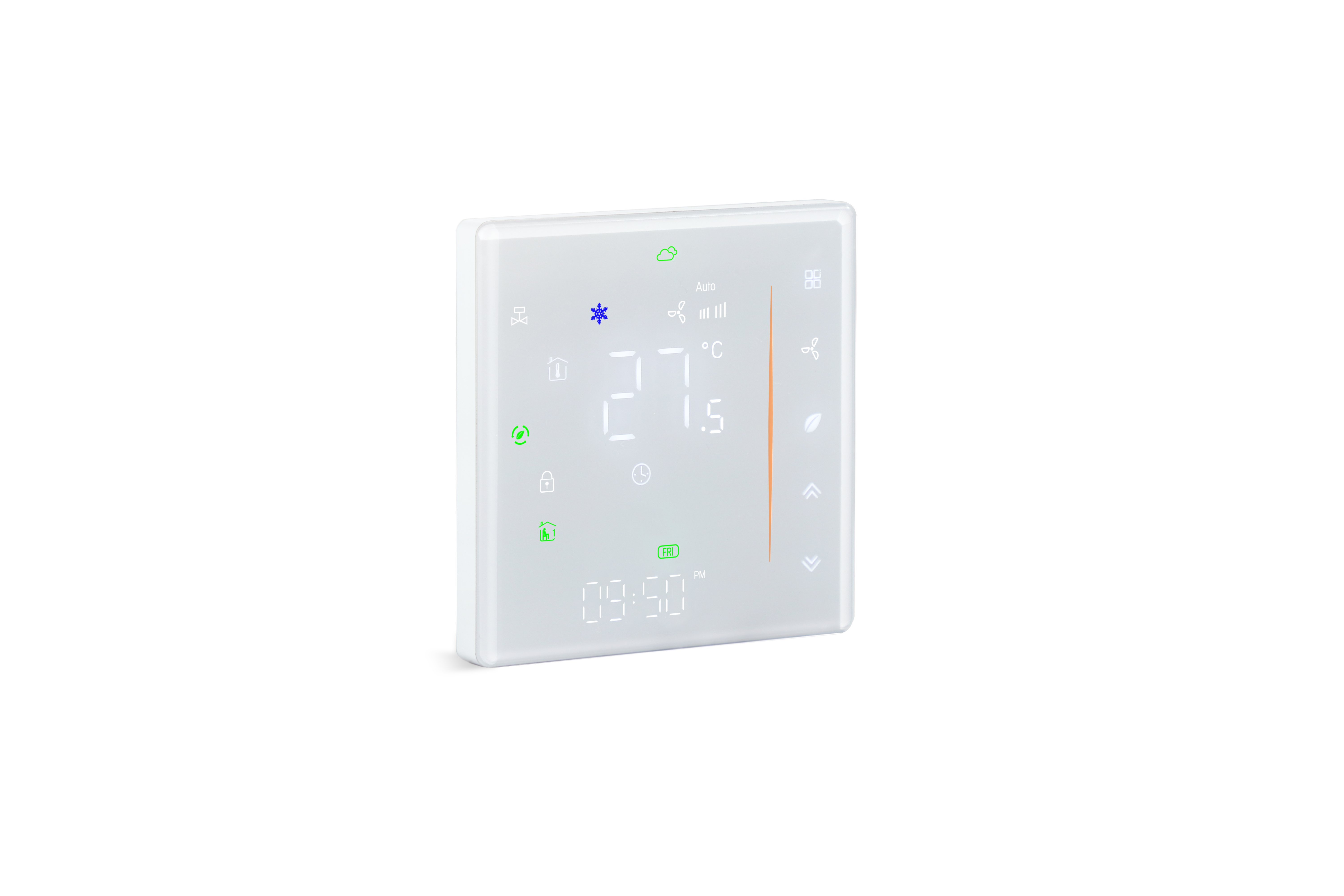

Image 3
Image 4
Image 5

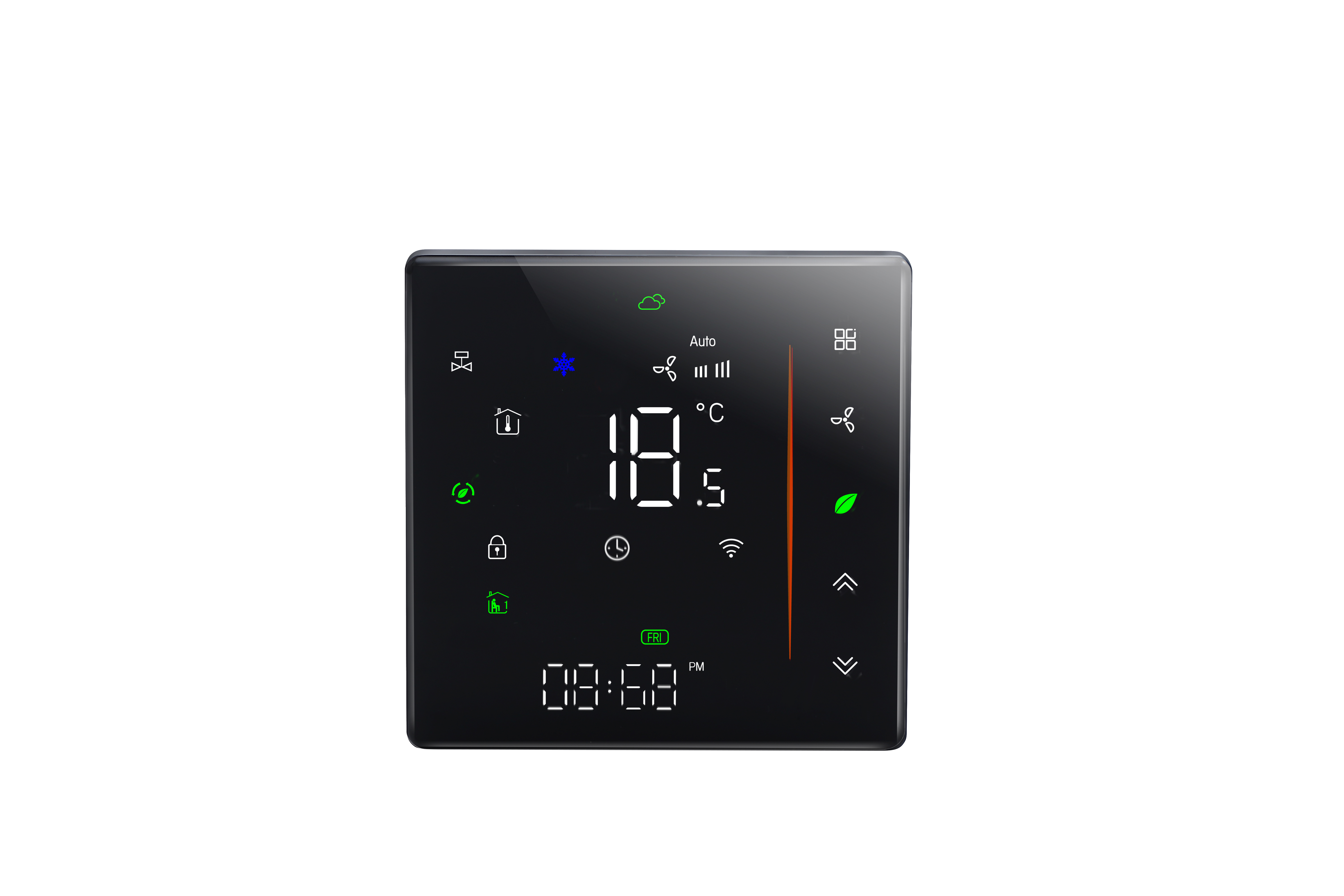

Image 6
Image 7

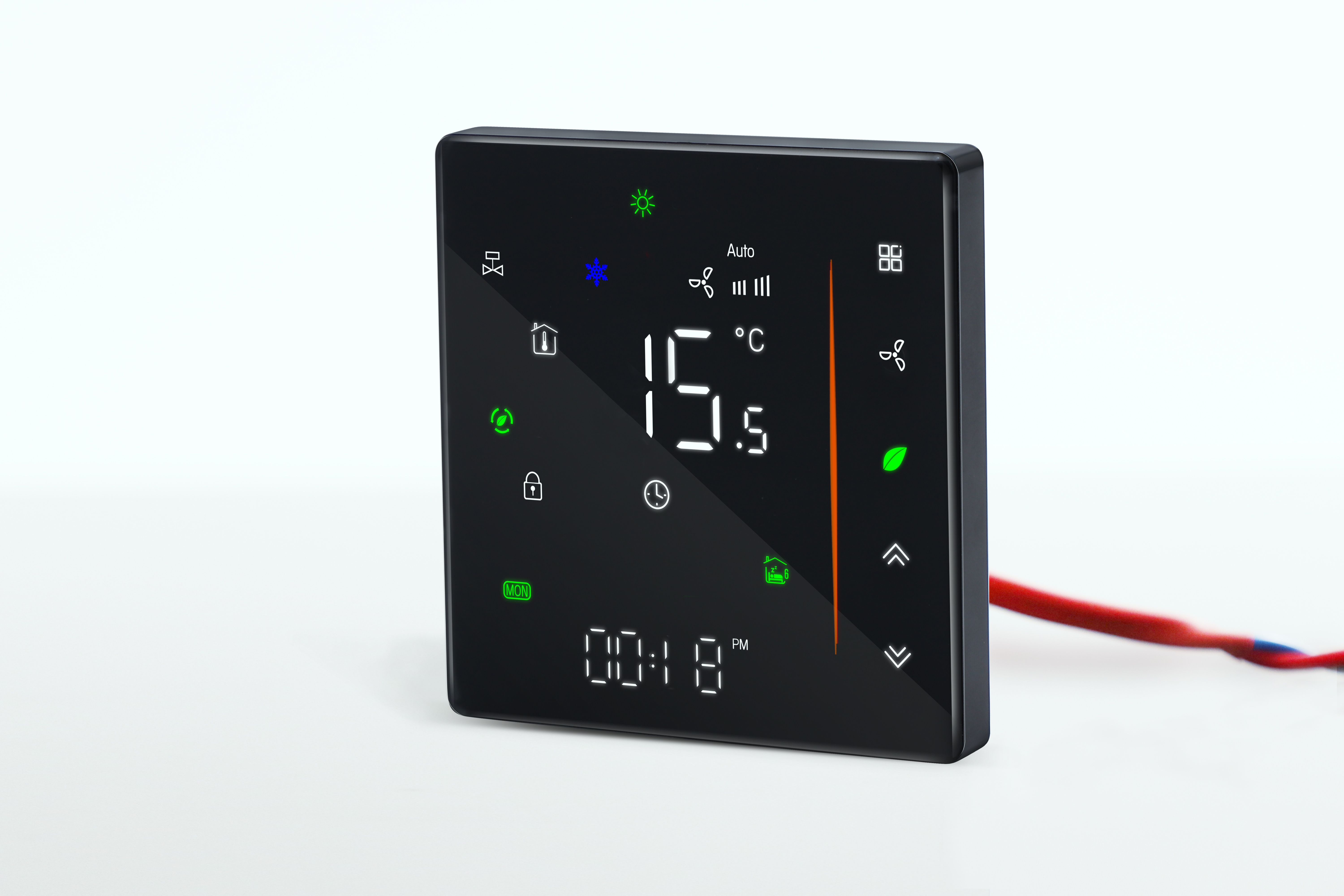

Image 8
Image 9
Image 10
Image 11
Image 12

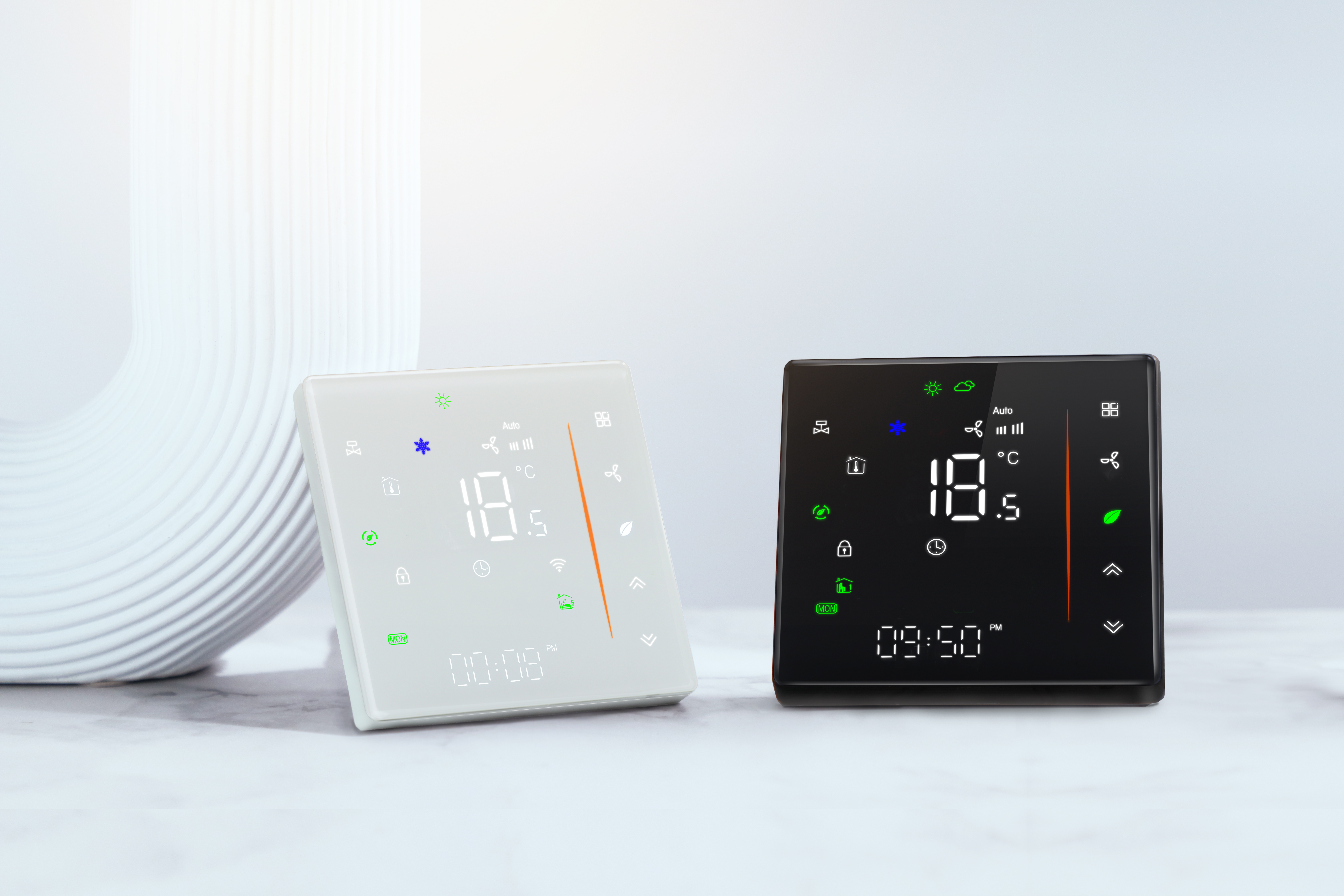

Image 13
Image 14

Key attributes

Power Supply

95–240 VAC, 50–60Hz

Fan Relay Amps

Resistance: 5A / Inductive: 3A

Valve Relay Amps

Resistance: 3A / Inductive: 1A

Current Load

5A (Water Heating, Water Cooling, Fan Coil), 16A (electric heating)

Sensor

NTC3950, 10K

Set Temp. Range

5–35 °C

Accuracy

±0.5 °C

Display Temp. Range

5–99 °C

Ambient Temperature

0–45 °C

Ambient Humidity

5–95% RH (Non-Condensing)

Storage Temperature

−5–45 °C

Timing Error

<1%

Power Consumption

<1.5W

Shell Material

PC + ABS (Fireproof)

Installation Box

86×86 mm Square or European 60 mm Round Box

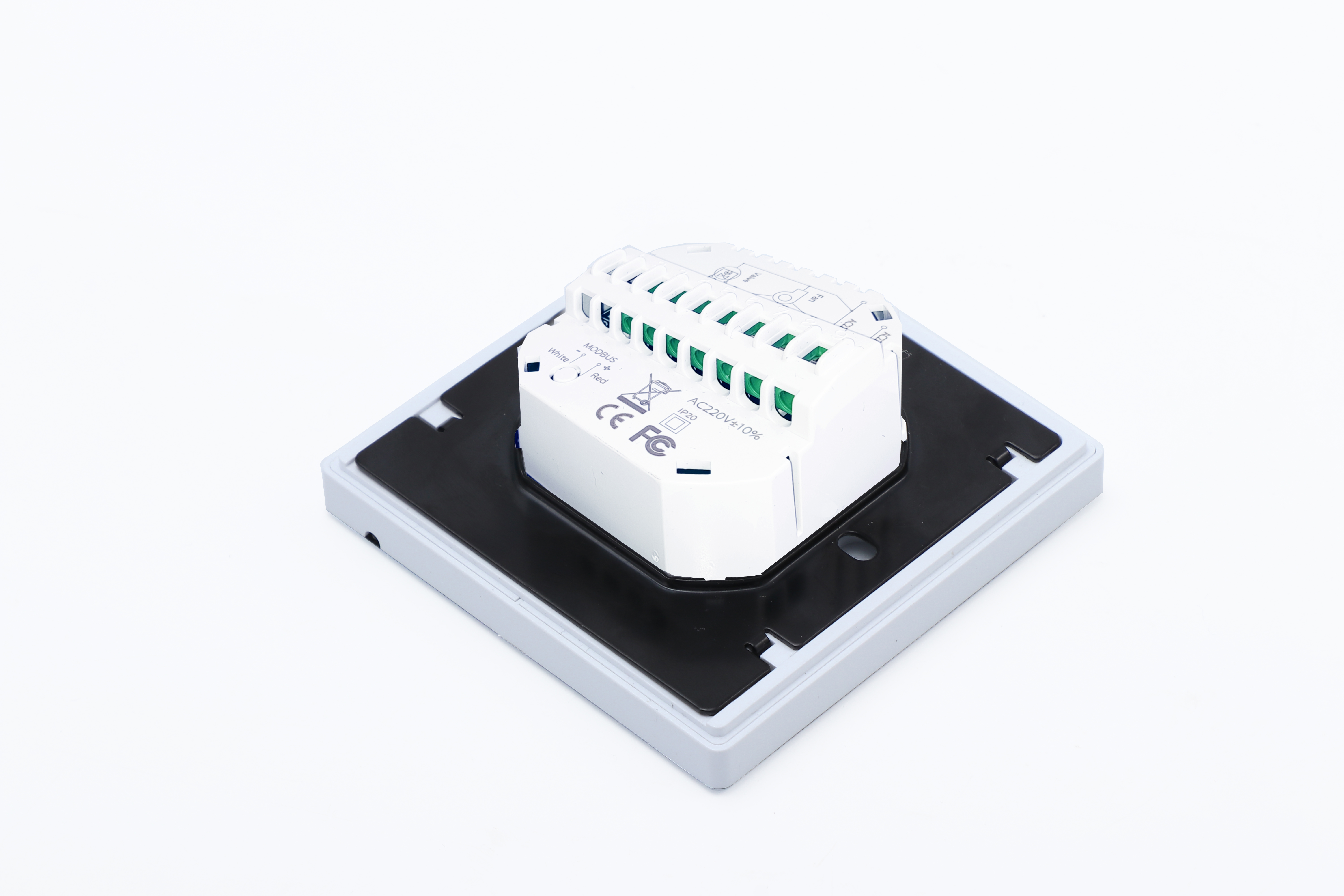

Wire Terminals

Wire 2×1.5mm² or 1×2.5mm²

Protection Class

IP20

Buttons

Capacitive Touch Buttons

Product description

The BAC-006 touch room thermostat offers precise control and modern UI for comfortable indoor climate. Features touch interface, advanced scheduling, optional Modbus connectivity, and NTC3950 sensor for ±0.5°C accuracy.

Why choose BAC-006

  • Intuitive touch interface
  • 6-period weekly scheduling
  • Optional Modbus connectivity
  • Accurate NTC3950 sensor ±0.5°C
